TOKEN Launches Three All-New High-End Carbon Fiber Wheelsets

TOKEN proudly presents three meticulously engineered carbon fiber wheelsets, each designed to deliver an exceptional strength-to-weight ratio and uncompromising performance.

The new models are:

• Ventous – 36mm

• Konax Pro – 52mm

• Konax Tri – 76mm

All three are available in both rim and disc brake configurations, ready to dominate the road or triathlon circuit.

---

The KONAX Series – Engineered for Aerodynamic Excellence

Inspired by the legendary IRONMAX-Hawaii KONA World Championships, the KONAX series was created to be a true racing weapon—purpose-built for the ultimate endurance arena.

The KONAX lineup includes two distinct editions:

• KONAX PRO – 52mm rim depth for versatile aerodynamic performance

• KONAX TRI – 76mm rim depth for maximum wind-cheating efficiency

Every KONAX rim profile was refined through Computational Fluid Dynamics (CFD) analysis, optimizing the balance between aerodynamics, stability, and responsiveness. The result: a wheelset that slices through the wind while maintaining confident control and top-tier speed.

---

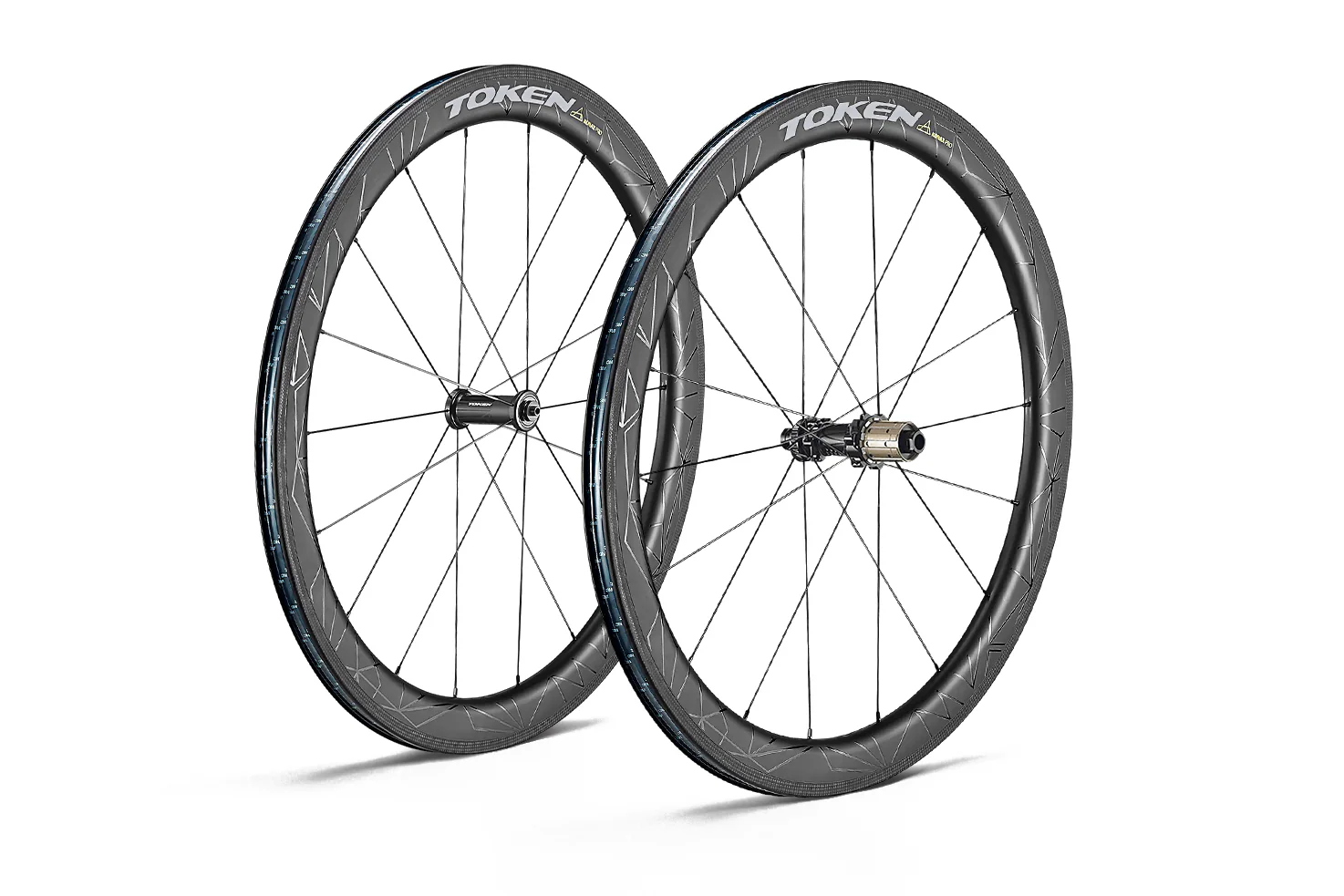

KONAX PRO (C52D) – Specifications

Tire Type: Tubeless Ready
Weight: 669 g (Front) / 813 g (Rear) – Total: 1482 g
Rim Diameter: 700c
Rim Material: Carbon Fiber
Rim Width (External): 27.2 mm
Rim Width (Internal): 22.6 mm
Rim Height: 52.3 mm
Nipples: Internal

Cassette Compatibility:

• Shimano 10–12s

• SRAM 10–11s

• SRAM XDR

Spoke Configuration:

• Front: 24 spokes, 2-cross lacing

• Rear: 24 spokes, 2-cross lacing
  Spoke Type: Pillar Wing 21 Straight

Hub Type: D1
Bearing Count: 2 (Front) / 4 (Rear)
Bearing Type: Premium

Brake Compatibility: Center Lock

Spacing:

• Front: 9 x 100mm QR / 12 x 100mm Thru Axle

• Rear: 10 x 135mm QR / 12 x 142mm Thru Axle

Maximum Tire Pressure: 72 psi (with or without tube)
Recommended Tire Size: 700x25c – 700x32c
Recommended Rider Weight Limit: 100 kg

Product Code: C52D

---

Included Extras

• Skewers

• Carbon-specific brake pads
