Spank 359 Rear Wheel

Product image 1
Product image 2
Product image 3
Product image 4

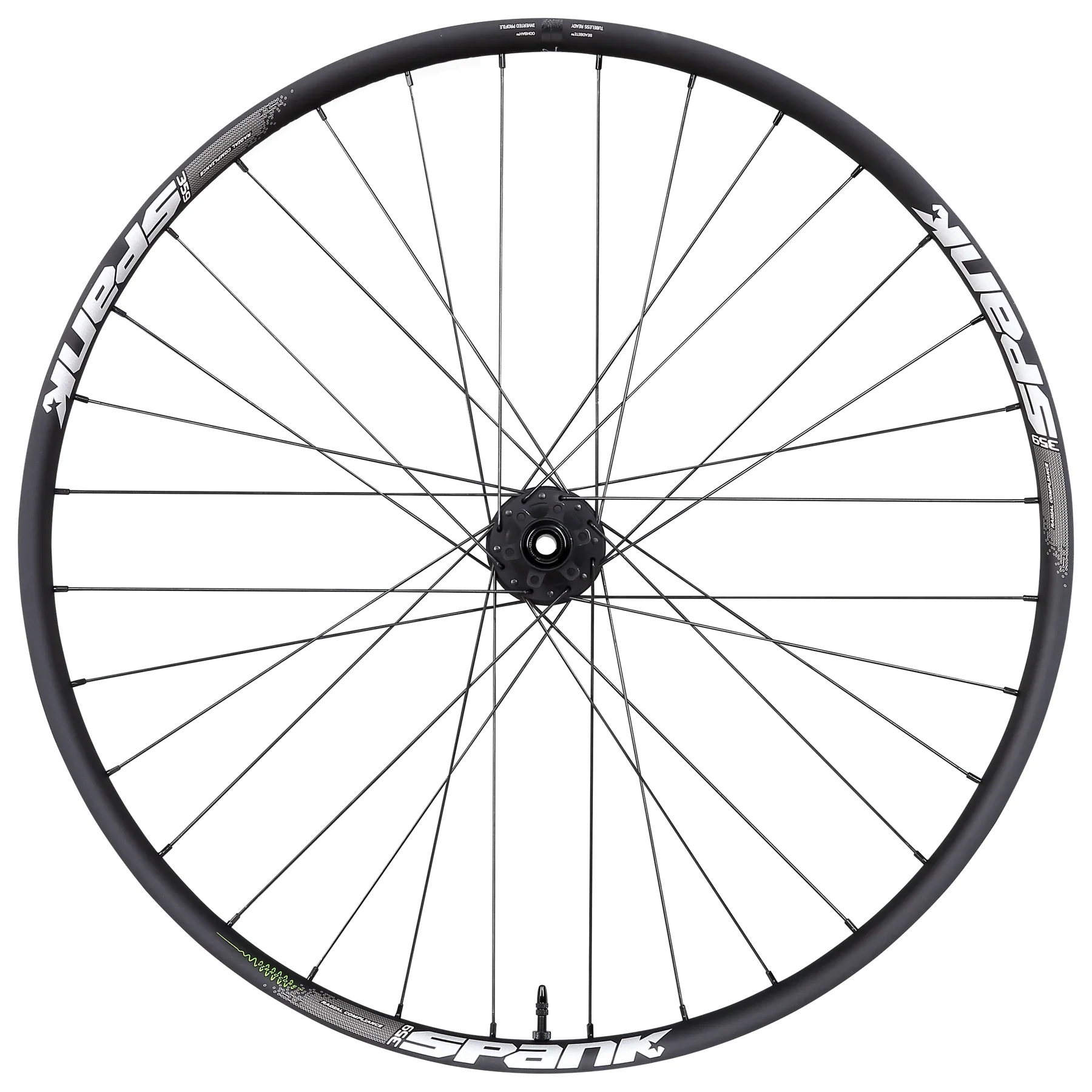

Spank 359 Rear Wheel

Spank 359 Rear Wheel

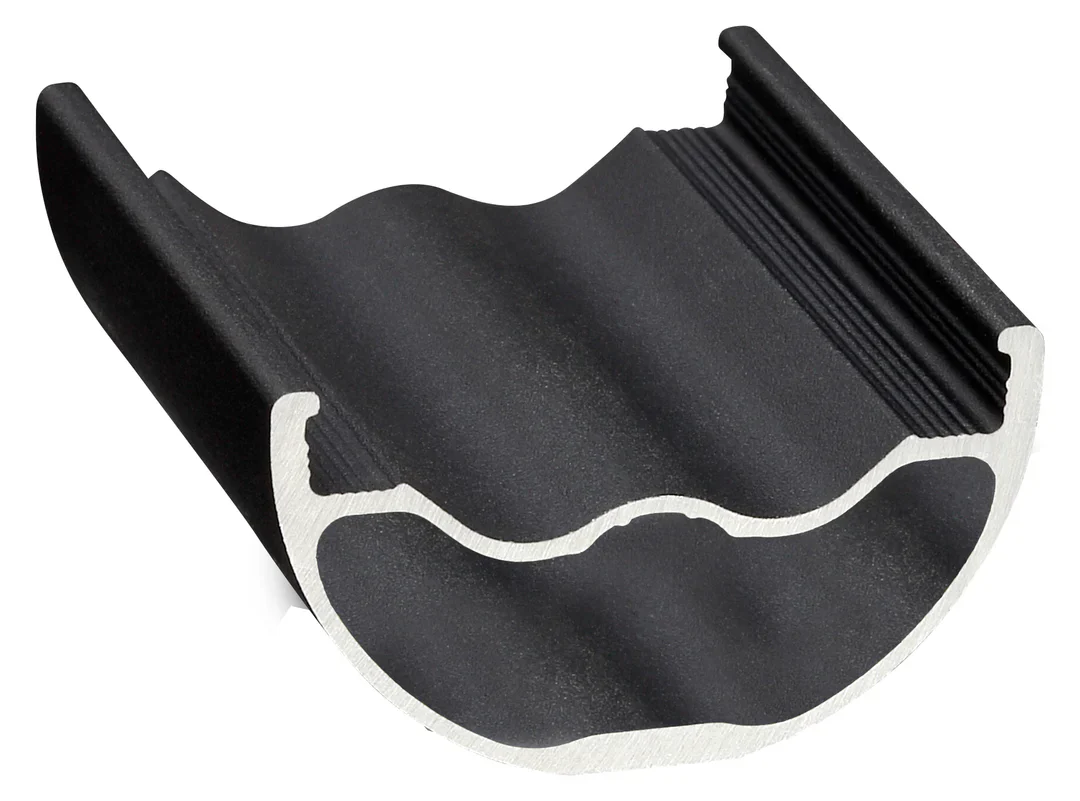

  • Moderately low 19mm profile height and wide width, balances the benefits of radial compliance with high lateral stiffness and predictable handling
  • Radial Compliance improves traction over bumps and chatter, while reducing negative feedback to the rider. Performance and comfort are improved
  • 5mm inner width is extremely versatile, fitting tires from 2.0” to 2.6”, and even allowing + size tire use without negative squaring off of tire profiles
  • Bead Bite tubeless hooks enhance tubeless performance and tire security, even at lower pressures
  • RECOMMENDED FOR:    ASTM 5, All mountain, trail, enduro, free ride, DH, E-Bike
  • RIDER TYPE:     HEAVY TO LIGHT RIDER:  Heavy to Light Impact



      FRONT WHEELS TO PAIR WITH:



      SPANK 350 SPANK 359 SPANK 350 VIBROCORE SPANK 359 VIBROCORE





      CLASSIFICATION & INTENDED USE:  ASTM 5



      ALL MOUNTAIN
      		 TRAIL
      		 ENDURO
      		 FREERIDE

      ✔

      ✔

      ✔

      ✔
      DOWNHILL GRAVEL XC E-BIKE

      ✔       		- - *



       * Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as seperate purchase in HG, XD and Microspline.  (See Hex Drive Service Parts)




      HUMAN FACTOR



      SPANK's recommendations for what body type and ride style this product is suited to.



      BODY WEIGHT & RIDE STYLE: Heavy Rider Medium Rider Light Rider
      Heavy Impact

      ✔

      ✔

      ✔

      Medium Impact

      ✔

      ✔

      ✔
      Light impact

      ✔

      ✔

      ✔




      RIM SPECIFICATIONS



      HOLE COUNT:
      		 28 / 32
      INNER WIDTH (mm):
      		 30.5

      OUTER WIDTH (mm):
      		 35
      PROFILE HEIGHT:
      		 19
      TYRE FIT
      		 2.0" to 2.6"




      BUILD SPECIFICATIONS



      BUILD:
      		 A-Class Handbuilt

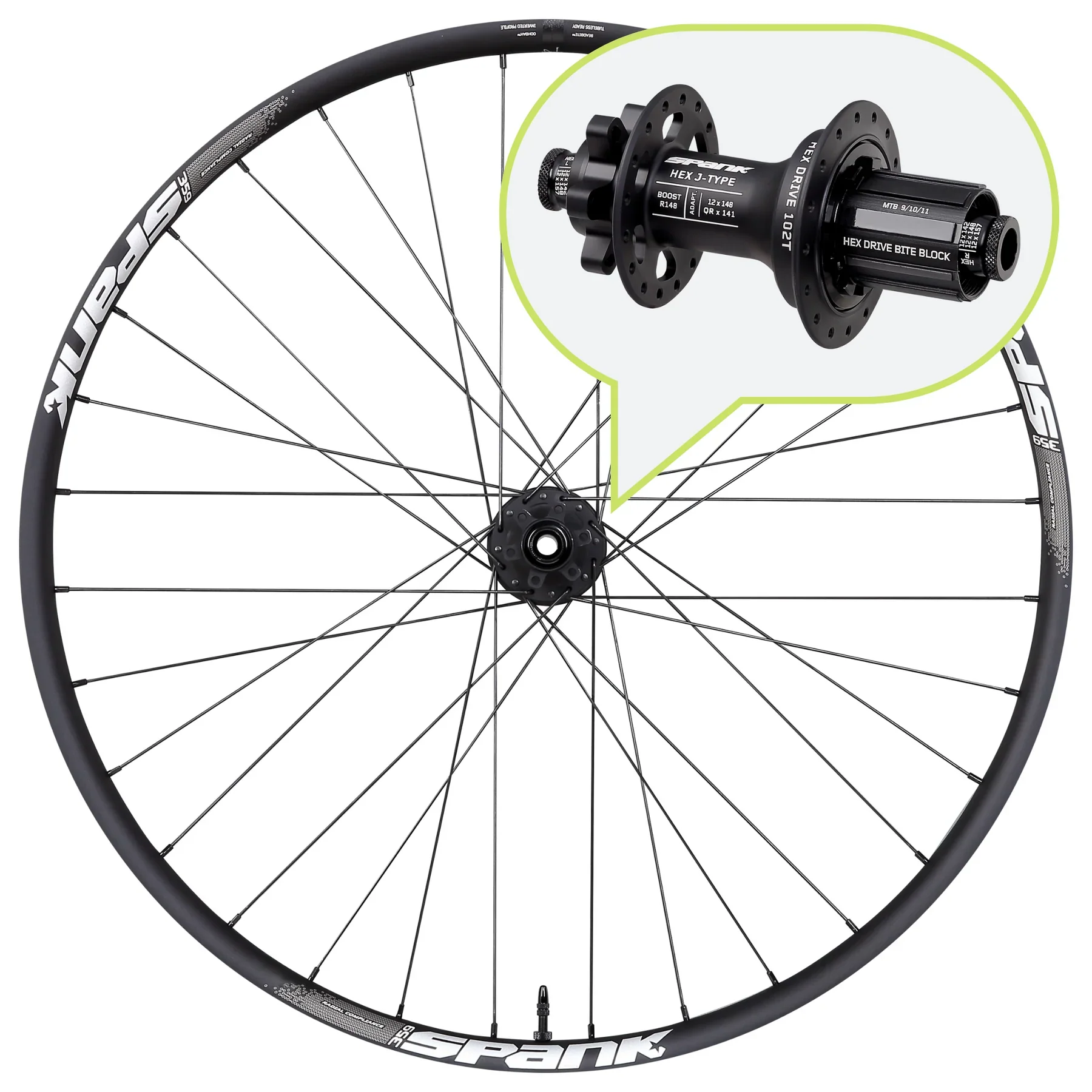

      HUB: SPANK HEX J-TYPE

      SPOKES:
      		 J-Hook, tripple butted 2.2/1.8/2.0
      NIPPLES:
      		 Brass external
      LACING:
      		 3 cross lacing
      VALVE: F/V Presta
      TUBELESS: Tubeless taped & valved




      HUB SPECIFICATIONS:



      ENGAGEMENT:

      HEX DRIVE 102T / 3.5° / 6 Pawl
      HOLE COUNT:

      28H Straightpull / 32H J-Hook
      DISC MOUNT:

      6-bolt
      MATERIAL:

      CNC optimized forged alloy hub body, alloy axle, alloy freehub body





      VARIANT SPECS




      		 HUB HUB SPACING BOOST FREEHUB HOLE COUNT ADAPTER INCL. WEIGHT ERD ETRTO SPOKE LENGTH SPOKE LENGTH
      27.5" HEX J TYPE 12x148 BOOST HG 32H -
      		 1149g 560++ 584x30.5 R-270

      L-273

             		 HEX J TYPE

      12x148

      BOOST
      		 XD

      32H
      		 -

      1141g

      560++

      584x30.5

      R-270

      L-273
      HEX J TYPE 12x148 BOOST Microspline 32H - 1077g 560++ 584x30.5 R-270 L-273
      HEX J TYPE 12x148 BOOST HG-E 32H - 1162g 560++ 584x30.5 R-270 L-273
      HEX J TYPE 12x148 BOOST XD-E 32H - 1141g 560++ 584x30.5 R-270 L-273
      HEX J TYPE 12x148 BOOST MS-E 32H - 1147g 560++ 584x30.5 R-270 L-273

             		 HEX J TYPE 12x150
      		 -
      		 HG

      32H
      		 12x157

      1150g

      560++

      584x30.5

      R-270

      L-273


      		HEX J TYPE


      12x150
      		 - XD

      32H

      12x157

      1142g

      560++

      584x30.5

      R-270

      L-273
      HEX J TYPE 12x150 - Microspline 32H 12x157 1078g 560++ 584x30.5 R-270 L-273
      STRAIGHTPULL 12x148 BOOST HG 28H - 1014g 560++ 584x30.5 R-284 L-285
      STRAIGHTPULL 12x148 BOOST XD 28H - 1007g 560++ 584x30.5 R-284 L-285
      STRAIGHTPULL 12x148 BOOST Microspline 28H - 1018g 560++ 584x30.5 R-284 L-285













      29"       		 HEX J TYPE 12x148
      		 BOOST HG

      32H
      		 -

      1197g

      598++

      622x30.5

      R-289

      L-292

             		 HEX J TYPE 12x148
      		 BOOST XD

      32H
      		 -

      1189g

      598++

      622x30.5

      R-289

      L-292
      HEX J TYPE 12x148 BOOST Microspline 32H - 1121g 598++ 622x30.5 R-289 L-292
      HEX J TYPE 12x148 BOOST HG-E 32H - 1206g 598++ 622x30.5 R-289 L-292
      HEX J TYPE 12x148 BOOST XD-E 32H - 1194g 598++ 622x30.5 R-289 L-292
      HEX J TYPE 12x148 BOOST MS-E 32H - 1191g 598++ 622x30.5 R-289 L-292
      HEX J TYPE 12x150 - HG

      32H

      12x157

      1198g

      598++

      622x30.5

      R-289

      L-292
      HEX J TYPE 12x150 - XD

      32H

      12x157

      1190g

      598++

      622x30.5

      R-289

      L-292
      HEX J TYPE 12x150 - Microspline 32H 12x157 1122g 598++ 622x30.5 R-289 L-292
      STRAIGHTPULL 12x148 BOOST HG 28H - 1058g 598++ 622x30.5 R-303 L-304
      STRAIGHTPULL 12x148 BOOST XD 28H - 1050g 598++ 622x30.5 R-303 L-304
      STRAIGHTPULL 12x148 BOOST Microspline 28H - 1062g 598++ 622x30.5 R-303 L-304



      Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.


      ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS

      Boost R148:

      HEX Rear Hub QRx135/141 Adapter

      R150/157:

      N/A

      R135/142:

      HEX Rear Hub QRx135/141 Adapter


      HEX Rear Hub 10x135 Adapter




      SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS



      HEX Rear HG/HGR Hub Replacement Bearing Kit

      HEX Rear XD/XDR Hub Replacement Bearing Kit

      HEX Boost Rear Hub Alloy Axle Shaft

      HEX Rear Hub 135/142mm Alloy Axle Shaft

      HEX Rear Hub 150/157mm Alloy Axle Shaft

      HEX Rear Hub HG Alloy Anti-Bite Freehub

       HEX Rear Hub XD Alloy Freehub



      ADAPTERS COMPATIBLE WITH SPANK HEX STRAIGHTPULL REAR HUBS



      Boost R148:

      Rear Hub QRx135/141 Adapter



      SERVICE KITS COMPATIBLE WITH SPANK HEX STRAIGHTPULL REAR HUBS



      HEX Rear HG/HGR Hub Replacement Bearing Kit

      HEX Rear XD/XDR Hub Replacement Bearing Kit

      HEX Boost Rear Hub Alloy Axle Shaft

      HEX Rear Hub HG Alloy Anti-Bite Freehub

      HEX Rear Hub XD Alloy Freehub
      Select Wheel Size
      Select Hub
      Select Axle Size
      From $108.00

      Original: $359.99

      -70%
      Spank 359 Rear Wheel—

      $359.99

      $108.00
