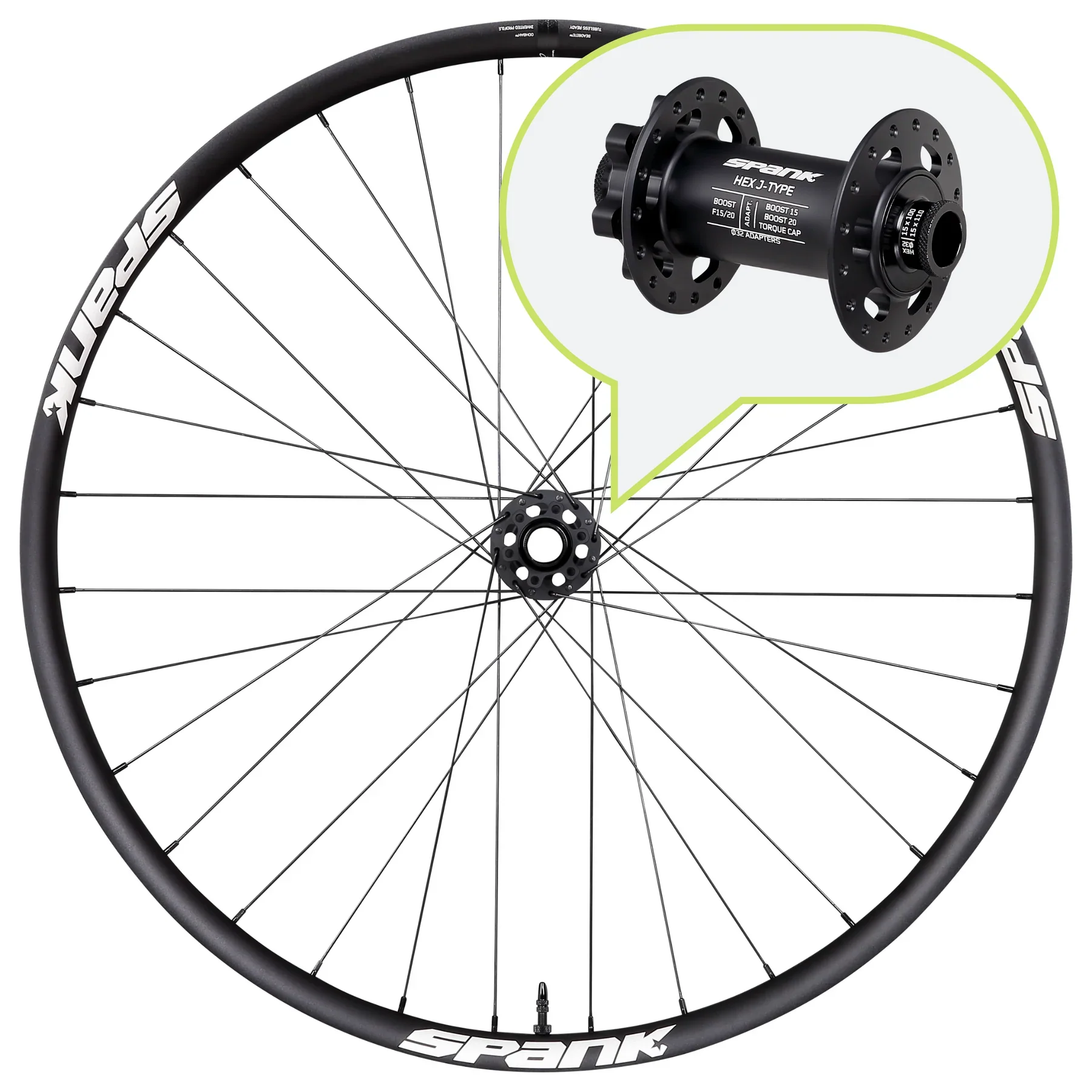

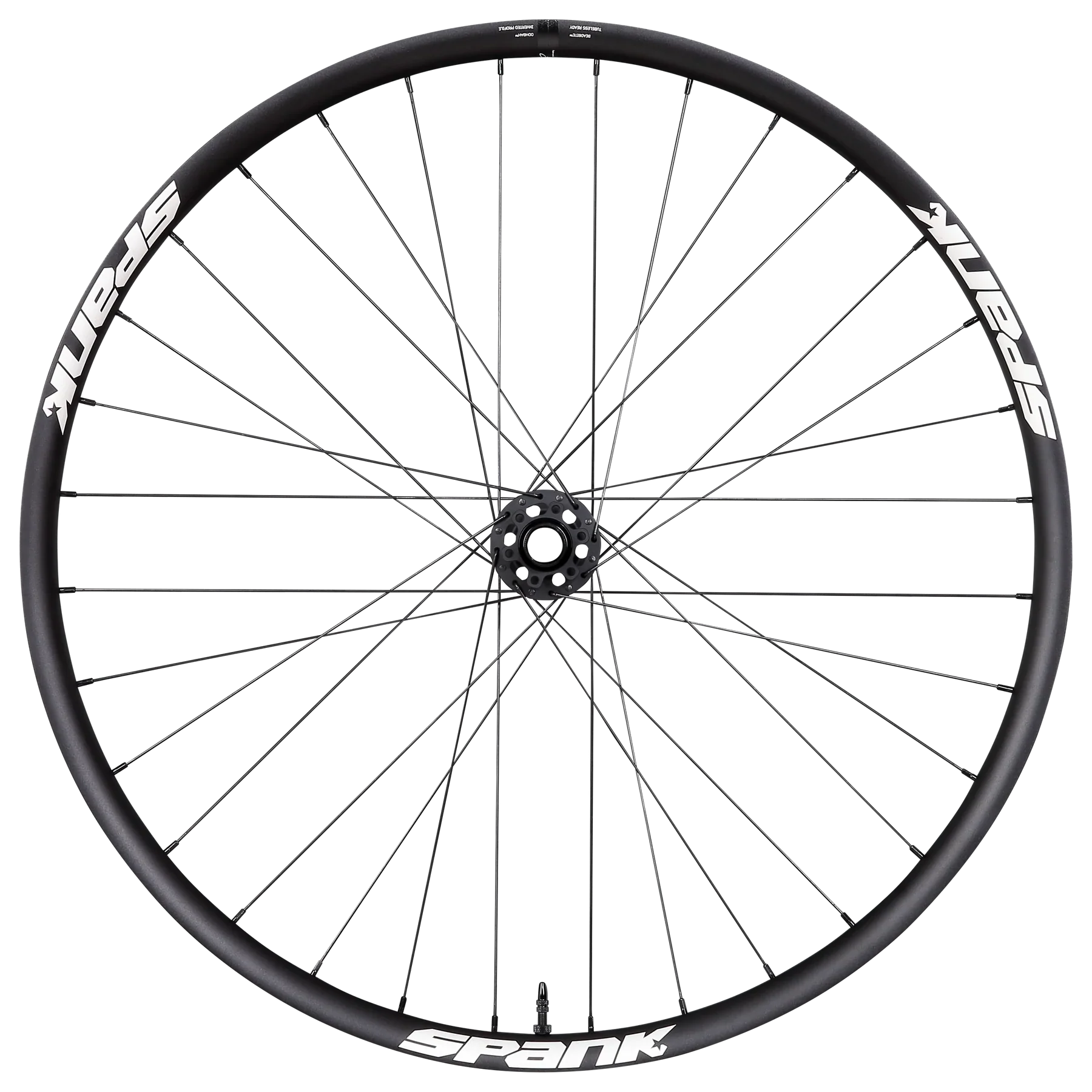

Spank Spike Race 33 Front Wheel
- A high-performance alloy rim designed for freeride, enduro and downhill race use
- Tubeless ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
- 32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
- The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
- Shotpeen finish to increase fatigue life and make it more durable
REAR WHEELS TO PAIR WITH:
 |
|---|
| SPIKE RACE 33 |
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN |
TRAIL |
ENDURO |
FREERIDE |
|---|---|---|---|
|
|
|
|
|
| DOWNHILL | GRAVEL | XC | E-BIKE |
|
|
- | - | * |
* Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as seperate purchase in HG, XD and Microspline. (See Hex Drive Service Parts)
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact |
|
|
|
|
|
|
|
|
| Light impact |
|
|
|
RIM SPECIFICATIONS
| HOLE COUNT: |
32 |
|---|---|
| INNER WIDTH (mm): |
28 |
|
|
33 |
| PROFILE HEIGHT: |
22 |
| TYRE FIT |
1.9" to 2.5" |
BUILD SPECIFICATIONS
| BUILD: |
Handbuilt |
|---|---|
| HUB: | SPANK HEX J-TYPE |
|
|
J-Hook, tripple butted 2.2/1.8/2.0 |
| NIPPLES: |
Brass external |
| LACING: |
3 cross lacing |
| VALVE: | F/V Presta |
| TUBELESS: | Tubeless taped & valved |
VARIANT SPECS
| HUB | HUB SPACING | BOOST | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 26" |
|
20x110 |
- | 32H | 15x100 |
845g | 529++ | 559x28 | R-258 | L-256 |
| 27.5" |
|
|
- |
|
15x100 |
887g | 554++ | 584x28 | R-269 | L-267 |
|
|
|
BOOST |
|
|
899g |
|
|
|
|
|
| 29" |
|
|
- |
|
|
923g | 591++ | 622x28 | R-288 | L-286 |
|
|
|
BOOST |
|
|
936g |
|
|
|
|
Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.
ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE FRONT HUBS
|
Boost F15/20 |
HEX Ø32 Boost Front Hub Torque Caps Adapter |
|---|---|
|
F15/20 |
HEX Ø32 Front Hub QRx100 Adapter |
|
HEX Ø32 Front Hub 12x100 Adapter |
|
|
All Hex J-Type Front Hubs |
HEX Ø32 Front Hub Boost 15x110 Conversion Kit |
|
|
HEX Ø32 Front Hub Boost 20x110 Conversion Kit |
SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE FRONT HUBS
|
HEX Ø32 Front Hub Replacement Bearing Kit |
