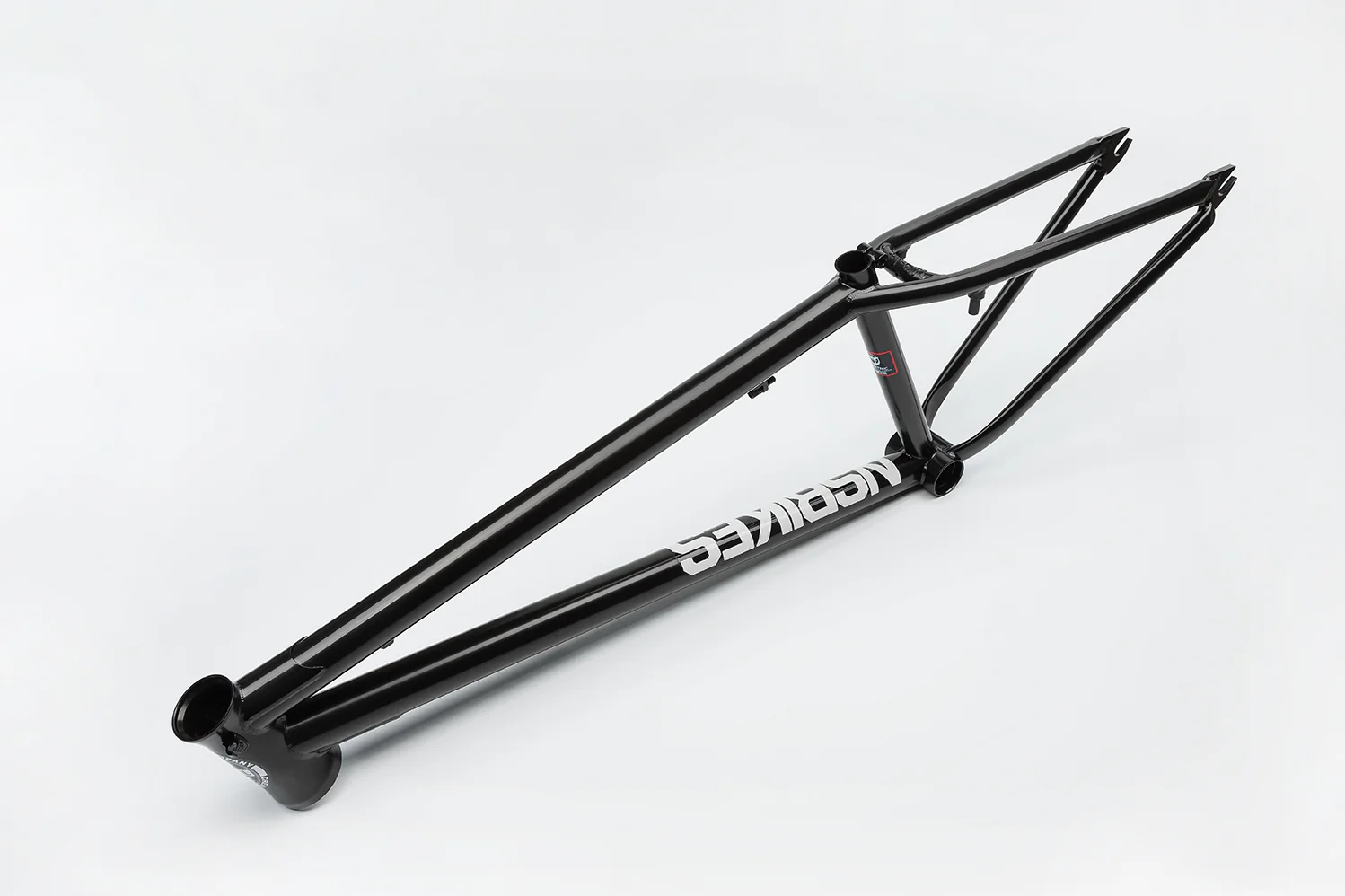

NS Bike Capital Frameset
BUILT FOR PURE STREET PERFORMANCE
The Capital is a hardcore 26” street frame with radical geometry and ultra-short chainstays for max agility. Built with multi-butted cromoly tubes, it's tough in stress zones and resistant to dents — perfect for the demands of urban riding.
Designed by our rider and product manager "RNS", it features slim seat stays, U-brake compatibility, and fully removable brake hardware for a clean brakeless look. It runs BMX-style components: 110x14 hub, Spanish BB, integrated headset and pivotal post.
Now updated with an integrated tapered IS42/IS52 head tube and gyro tabs for modern short-travel DJ forks (not compatible with RNS fork).
REVISED FOR 2020
- Integrated tapered headtube
- Compatible with all suspension forks
- Not compatible anymore with RNS fork
- Gyro tabs
MAIN FEATURES
- Dedicated pure street frame with radical geometry super short CS, steep HA, high BB

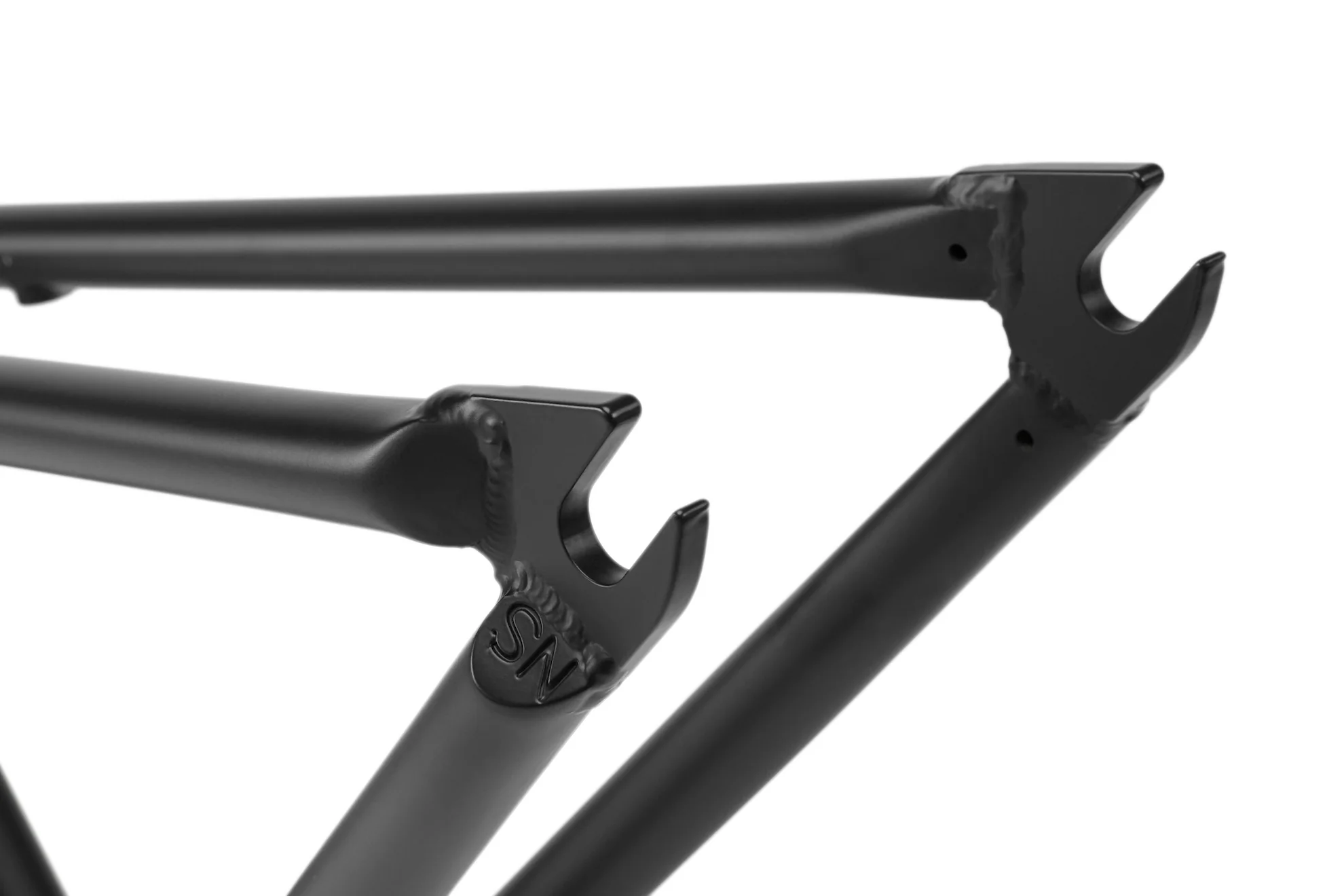

- 110x14 dropouts, Spanish BB, U-brake mounts, integrated headtube
- Ride quality & classic slim look for chromoly frame lovers
- High-end tube-set with offset multi butted Tange cromoly
- For 2019 available in 26” version only
TECHINCAL SPECIFICATIONS
| Material | Custom butted 4130 cromoly |
| Recommended fork travel | 60-100mm or rigid forks 420-440mm |
| Headset | Integrated tapered IS42/IS52, head tube stack: 115mm / 4.5” |
| Fits forks | Compatible with all suspension forks, not compatible anymore with RNS fork |
| BB | Spanish BB, 68mm |
| Biggest chainring | Up to 30t – depending on cranks, axle length, BB spacers, chain line, hub used |
| Sprocket | Sprockets with guards (e.g. Odyssey MDS) will fit only without internal guard |
| Hub spacing | BMX hub spacing 110x14, accepts both right & left side drive hubs |
| Use of pegs | Capital is the only NS frame that accepts use of pegs |

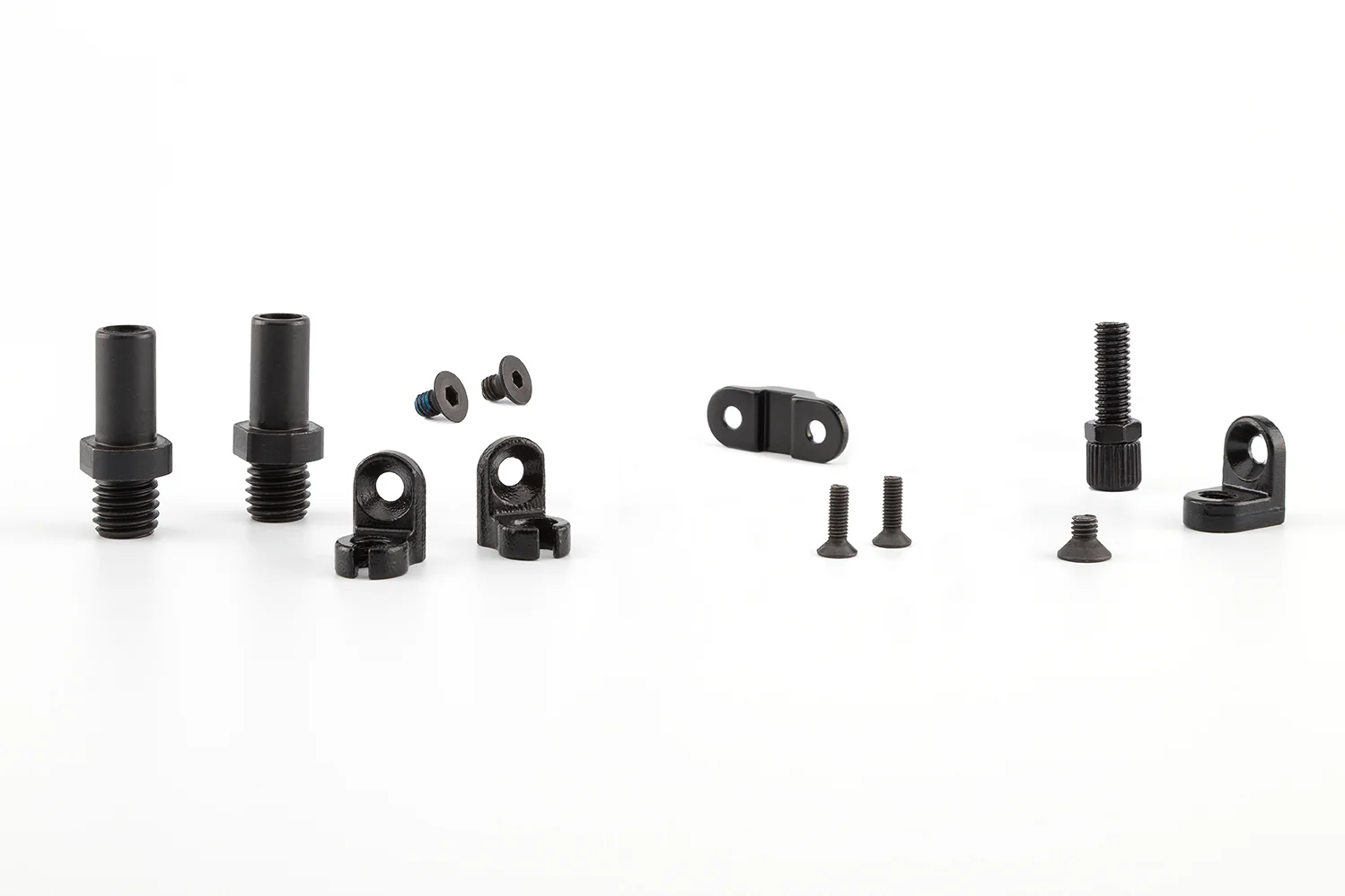

| Brakes | Removable U-brakes hardware (cable guide, cable stopper, and brake pivots) |
| Seat post | 25.4 / clamp included |
| Max tyre size | 26”x2.2” |
| Weight | 2.59 kg + 0.03 kg U-brakes hardware |
Note: Specifications subject to change without notice. Actual colours and design may vary slightly from the images on the website.
