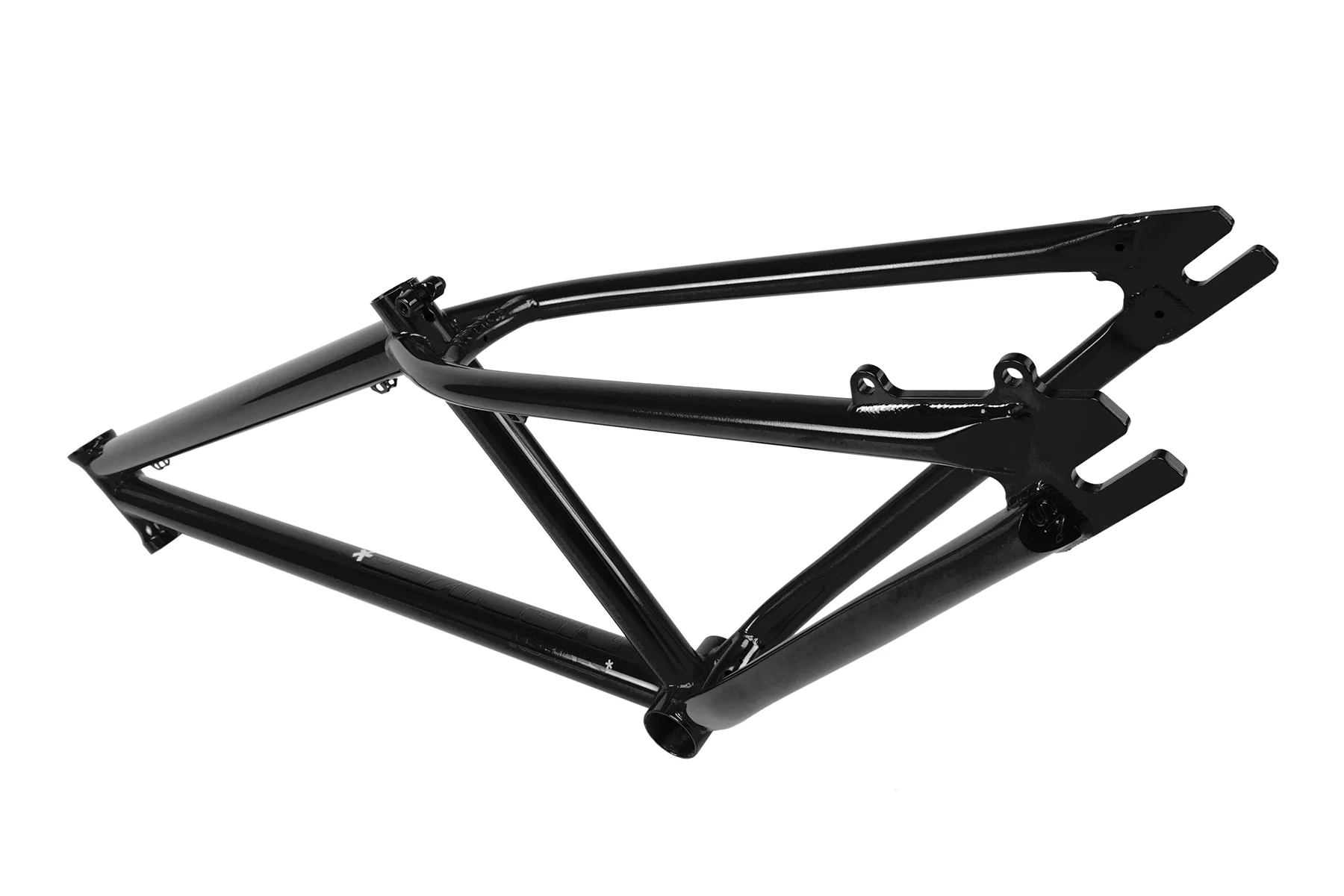

SUBURBAN FRAME: DIRT JUMP CLASSIC

A long-standing favorite among serious dirt jumpers worldwide, the Suburban is the ultimate all-rounder frame. Crafted from premium Japanese seamless chromoly and reinforced with offset butted tubing and integrated gussets, it delivers exceptional strength without added weight. Unique details like the lost-wax seat stay bridge with a 3D logo and the upgraded tapered head tube complete this iconic, high-performance design.

REVISED FOR 2020

• Removable Gyro Tabs
• Threaded 73mm BSA BB
• Improved Tire Clearance

MAIN FEATURES

• Tapered integrated headtube (fits forks with standard 1 1/8” or tapered 1.5 - 1 1/8” steer tubes)
• Choice of serious dirt and park riders around the world
• Ride quality & classic slim look for chromoly frame lovers
• High-end tube-set with o set multi butted Tange cromoly

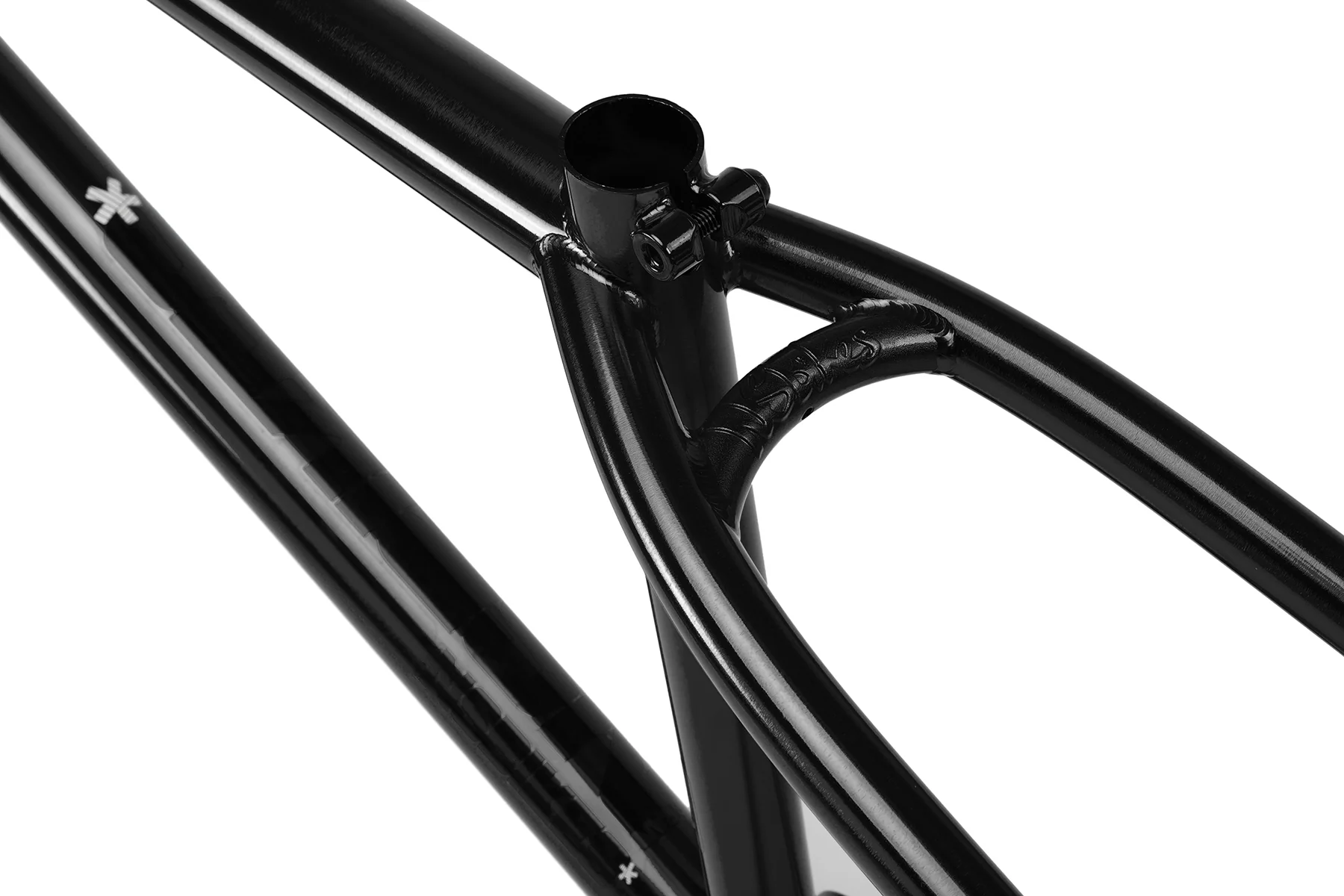

• No ugly external gussets, lost wax SS bridge with 3D logo
• Gyro tabs included

TECHINCAL SPECIFICATIONS

Material	Custom butted 4130 Tange Eccentric cromoly steel
Recommended fork travel	80–120mm
Headset	Integrated tapered IS42/IS52, head tube length: 115mm / 4.5”
Fits forks	Fits forks with standard 1-1/8” steerer tubes
BB	Threaded 73mm
Biggest chainring	Up to ~32t
Rear hub	135x10mm, horizontal dropouts, suggested bolt-on hubs
Disc brake	IS-2000 disc brake mount, max rotor size: up to 185mm
Max tyre size	26”x2.3”
Seat post	27.2mm seat post / integrated seat clamp
Gyro tabs	Not included
Weight	~2.59 kg

Note: Specifications subject to change without notice. Actual colours and design may vary slightly from the images on the website.
